JZX90Link - JZX90X Toyota Plug-in

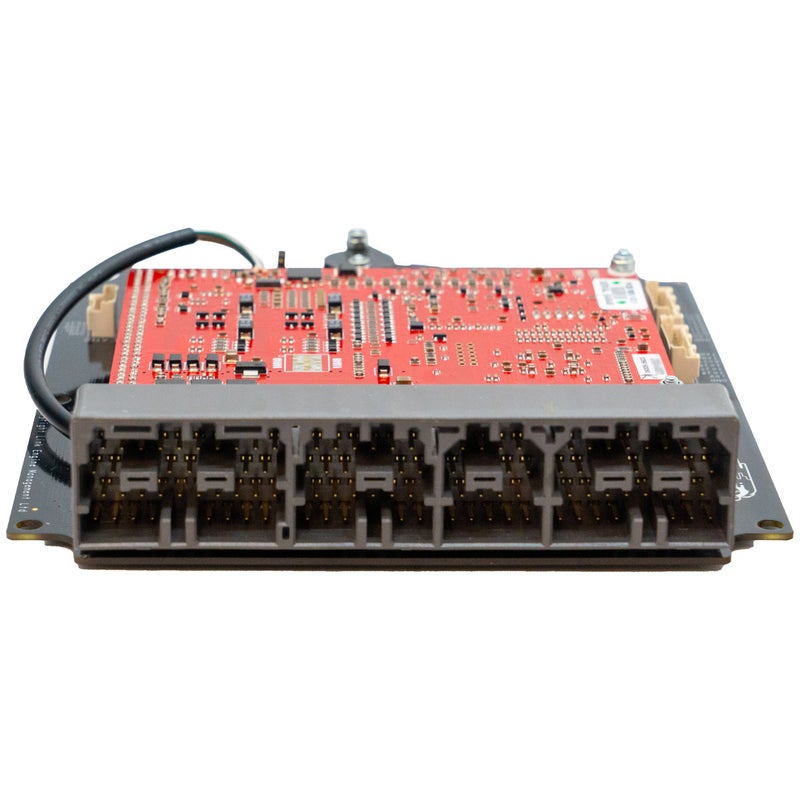

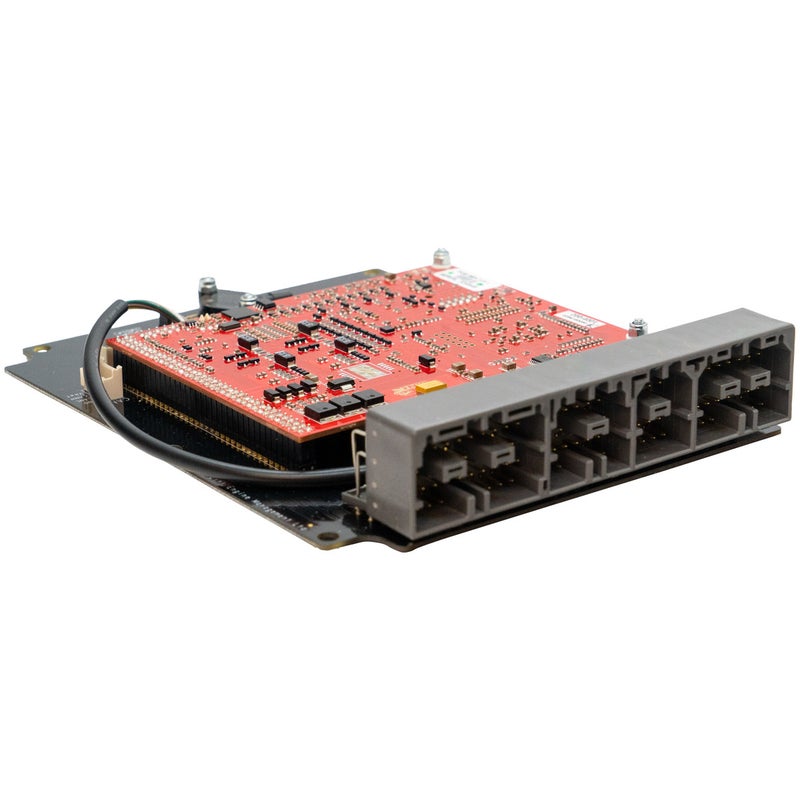

Product descriptionEasy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.Designed for the 1JZ-GTE (Non-VVTi) engine. Please check your connector matches the header in the listed photo before purchasing.This ECU works for manual transmissions only.ECU includes an onboard 7 bar MAP sensor.Most factory features are supported. Check the features tab for I/O expansion options Suitable applications: Toyota JZX90 (Chaser/Cresta/Mark II) with 1JZ-GTE (Non-VVTi) engine, Manual TransmissionToyota JZZ30 (Soarer) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.Car manufacturer toyotaModel Soarer Product informationG4X PlugIn Key Features (where applicable):Up to 6D fuel and ignition mappingPrecision closed loop cam control (four cam, independent control)Sequential fuel deliveryDigital triggering, all OEM patternsOEM idle hardware supported5D boost control with three switchable tablesMotorsport features - antilag, launch, flat shiftContinuous barometric correction (on board)CAN portQuickTune - automated fuel tuningIndividual cylinder correctionUSB tuning cable includedStats recording into on-board memoryGear compensations for spark, boost and fuelReal time selectable dual fuel, ignition and boost mapsSync and crank sensors can be a combination of Hall effect, variable reluctance or opticalBoost control referenced to gear, speed or throttle position512 mega bytes data logging memoryStaged injectionKnock with "windowing"I/O Expansion Options:The following expansion connector inputs/outputs are provided: Expansion Connector 1 (J3)Pin 1 Ground (signal)Pin 2 5v outPin 3 Injector 4Pin 4 Injector 5Pin 5 Injector 6Pin 6 AUX 4Pin 7 AN TEMP 4Pin 8 AN TEMP 3Expansion Connector 2 (J9)Pin 1 Ground (signal)Pin 2 5v outPin 3 DI7Pin 4 DI8Pin 5 DI9Pin 6 An Volt 8Pin 7 An Volt 9Pin 8 An Volt 10E-Throttle Connector (J5)Pin 1 Ground (signal)Pin 2 5V outPin 3 An Volt 4Pin 4 An Volt 5Pin 5 An Volt 6Pin 6 An Volt 7Pin 7 Aux 10Pin 8 Aux 9 Shipping Product can be shipped with these shipping methods. Posti EMS 100,00 € Express delivery to anywhere in the world. EMS express parcels (Express Mail Service) are delivered to the recipient through the fastest possible route. Deliveries to the EU zone within 1–3 working days and elsewhere in the world within 2–8 working days.
