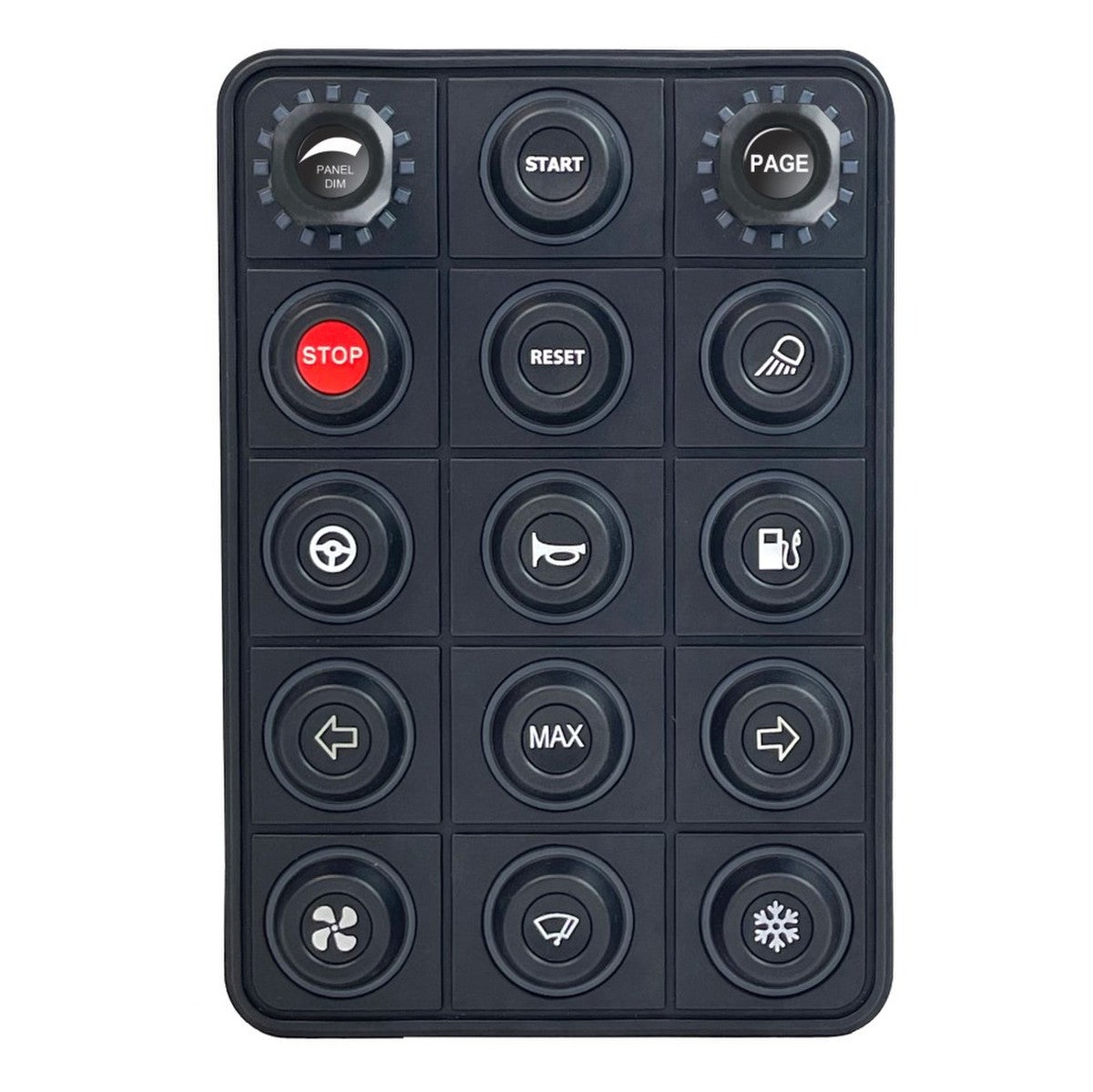

Link CAN Keypad 15 Button 2 Rotary Encoders

Product descriptionRugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality. Box Contents: 1 x 15 Button CAN Keypad1 x DTM4 Mating Connector Kit1 x Molex Mating Connector Kit1 x Link Sticker1 x Keypad Button Insert – Link Logo Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. Product information15 Buttons and 2 Rotary Encoders (push enabled, buttons can function independent to rotary encoder)4 Analog Inputs for additional Sensors or SwitchesCAN Configurable with G4X/G5 PC Link – Change button LED backlight colour, individual button indicator ring colour, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.CAN Bus Communication back to Engine Management System/PDM16 Blue LED Lights on Rotary Encoders while all 13 Pushbuttons Buttons have customisable RGB LED RingsCompatible with all Link G4X and G5 ECUsCustomizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economicalDTM4 Connector for CAN and Power, Molex Connector for Analogue Inputs Box Contents: 1 x 15 Button CAN Keypad1 x DTM4 Mating Connector Kit1 x Molex Mating Connector Kit1 x Link Sticker1 x Keypad Button Insert – Link Logo Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose. SpecificationsConnector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) Molex 39-01-3069Switch Life - 3 million operationsDefault Baud Rate - 1000kbit/sChemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic AcidUV Protection - UVB 400 hoursSalt Spray Per - ASTMB117 Weight - 360grams Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs) Shipping Product can be shipped with these shipping methods. Posti EMS 72,00 € Express delivery to anywhere in the world. EMS express parcels (Express Mail Service) are delivered to the recipient through the fastest possible route. Deliveries to the EU zone within 1–3 working days and elsewhere in the world within 2–8 working days.
